Support 12V DC
Long lifespan, ultra-quiet, highly reliatble
Supports PWM & FG signals
Operates from -40°C to 90'C
Compatible with Dl water, coolant, glycol
Support 12V DC
Long lifespan, ultra-quiet, highly reliatble
Supports PWM & FG signals
Operates from -40°C to 90'C
Compatible with Dl water, coolant, glycol

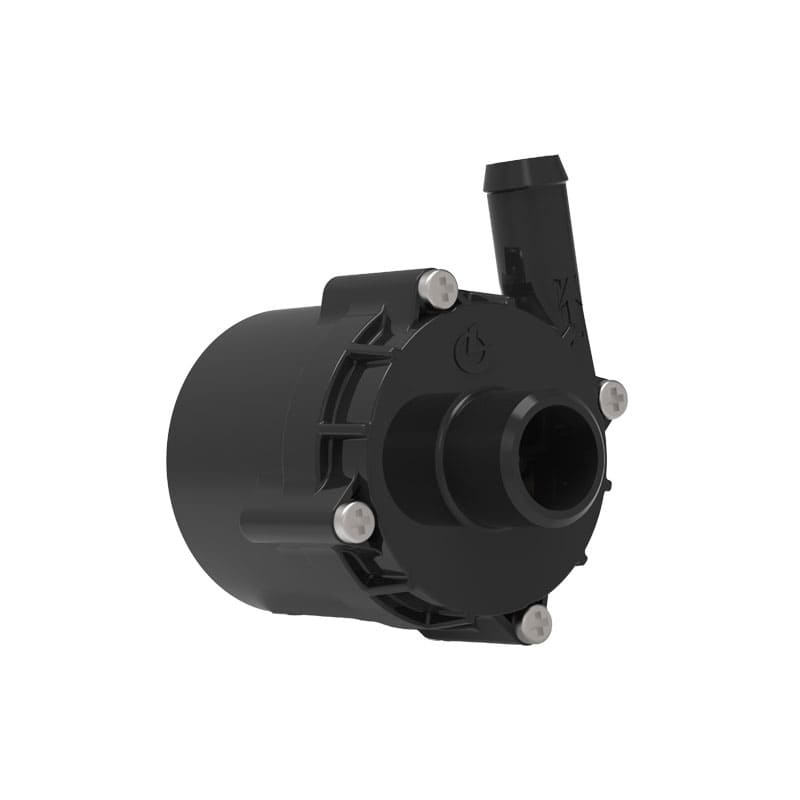

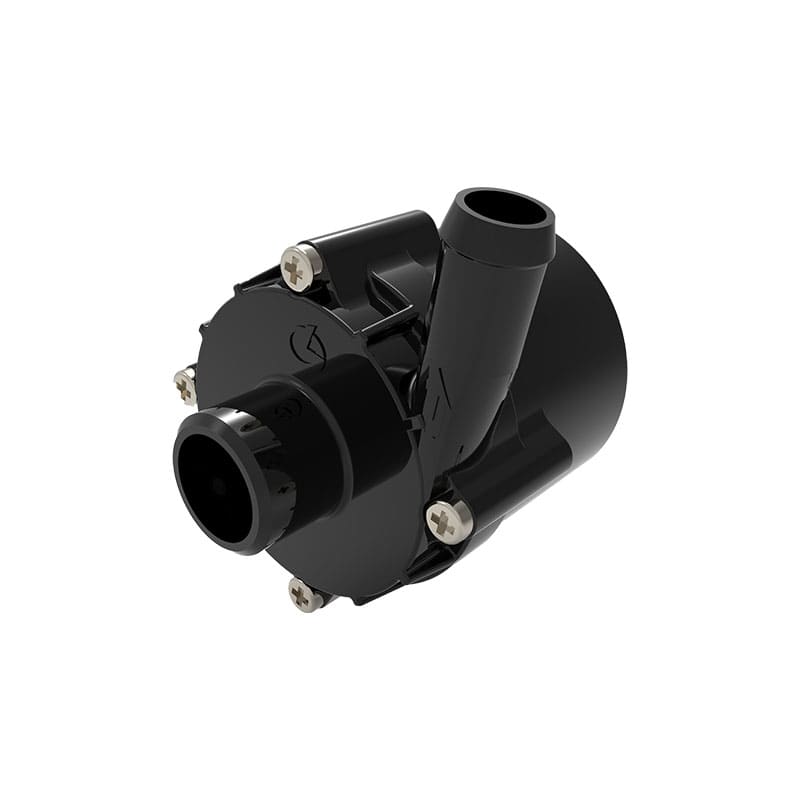

| Product Name | Electronic Water Pump |
|---|---|
| Model | CD021203060A |
| Product weight | 100g |
| Lifetime | ≥15000 hours |
| Rated voltage | 12V DC |
| Working voltage range | 8-20v (Pump works fine in this range) |
| Rated current | 0.5±10% A (@max flow rate) |
| Input power | 6W (@max flow rate) |
| Maximum flow | 6±15%L/min (Maximum flow the pump can achieve at rated voltage) |
| Maximum head | 3±0.3m (Maximum head the pump can achieve at rated voltage) |
| Maximum input current | 0.8A (When overloaded) |
| Protection rating | IP22 |
| Color | Black |
| Environtemal protection level | Comply with Rohs |
| Frame material | PA66 |
| Noise | ≤24dBA(at a distance of 1 meter from the pump, the background noise is ≤20dBA) |
| Insulation class | Class F(155℃） |
| Working principle | Centrifugal pump |
