Support 24V DC
Long lifespan, ultra-quiet, highly reliable
Supports PWM & FG signals
Operates from -40°C to 90'C
Compatible with Dl water, coolant, glycol
Support 24V DC
Long lifespan, ultra-quiet, highly reliable
Supports PWM & FG signals
Operates from -40°C to 90'C
Compatible with Dl water, coolant, glycol

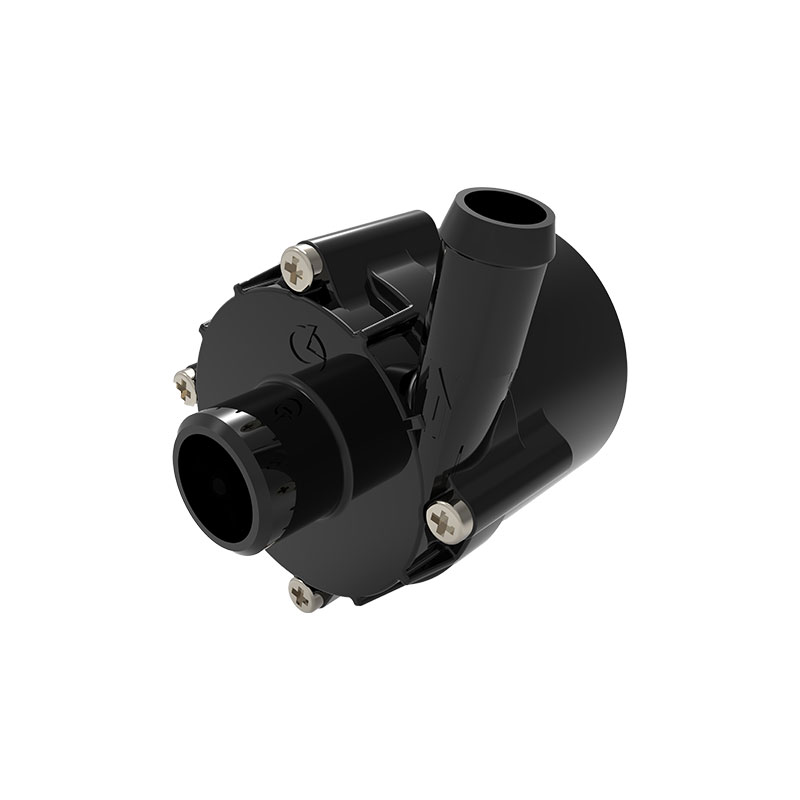

| Product Name | Electronic Water Pump |
|---|---|
| Model | CD0224060701 |
| Product weight | 100g |
| Lifetime | ≥15000 hours |
| Rated voltage | 24V DC |
| Working voltage range | 12-30v (Pump works fine in this range) |
| Rated current | 0.78±10% A (@max flow rate) |
| Input power | 18W (@max flow rate) |

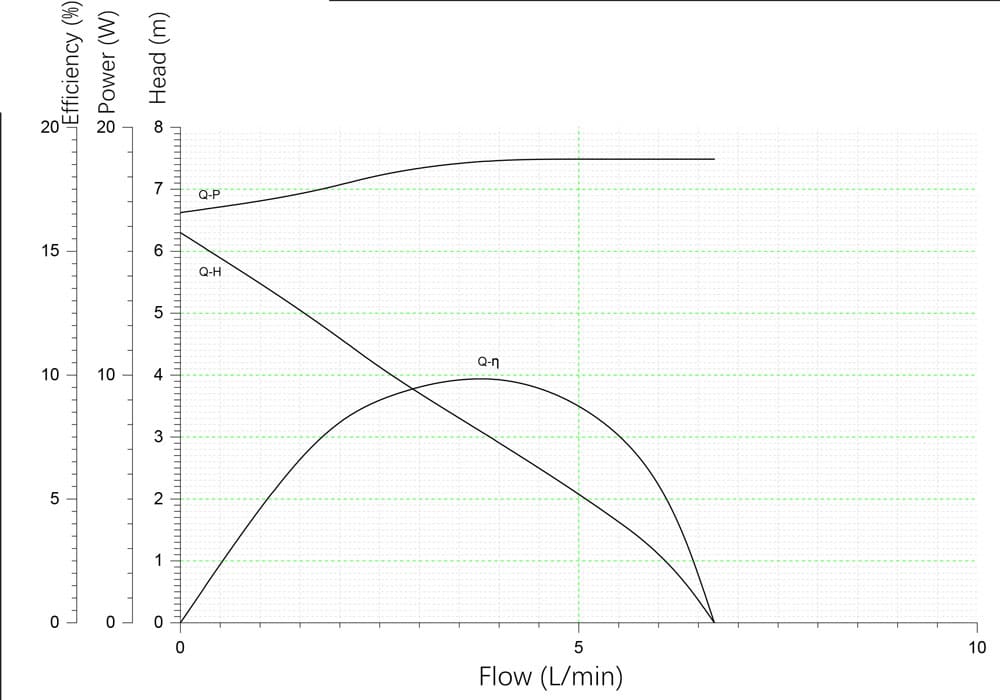

| Maximum flow | 6.5±15%L/min (Maximum flow the pump can achieve at rated voltage) |
| Maximum head | 6±0.5m (Maximum head the pump can achieve at rated voltage) |
| Maximum input current | 1A (When overloaded) |
| Color | Black |
| Environtemal protection level | Comply with Rohs |
| Frame material | PPA/PPE(FDA) |
| Noise | ≤24dBA(at a distance of 1 meter from the pump, the background noise is ≤20dBA) |
| Insulation class | Class F(155℃） |
| Working principle | Centrifugal pump |
