HR8050H24B Particle Counter Blower: A Practical AMP45 Alternative for Sampling Systems

Stable sampling airflow for environmental and particle detection equipment

Contact an Engineer View Products
Problem Space

Industry Challenges

Understanding the specific thermal and environmental demands of HR8050H24B Particle Counter Blower: A Practical AMP45 Alternative for Sampling Systems environments is the foundation of every Herays solution.

Airborne particle counters — instruments that measure particulate contamination in cleanroom environments, HVAC systems, pharmaceutical manufacturing, and semiconductor fab monitoring — require a sampling pump or blower to draw a precisely controlled air sample through the particle sensor at an exact volumetric flow rate. The most common sampling flow rates are 0.1 CFM (2.83 L/min), 1.0 CFM (28.3 L/min), and 50 LPM. Deviation from the specified sample flow rate directly causes measurement error — a flow rate 10% above target produces a particle count 10% below true concentration. The blower is a metrology component, not a mechanical one.

  • Stable, accurate flow rate across the full operating temperature range — particle counters are used in environments from −10°C cold storage facilities to +40°C outdoor industrial sites. The sampling blower must maintain its specified flow rate within ±2–5% across this temperature range without active flow compensation.
  • Zero particle generation within the blower — particles shed from blower bearings, motor brushes, or contaminated lubricants that pass through the sensor create false counts. BLDC motors (no brush debris), sealed bearings (no lubricant vapor), and smooth internal airflow surfaces (no turbulence-generated fibrous particles) are required.
  • Low vibration for optical sensor alignment — particle counters use laser diodes and photodetectors in precise alignment. Blower-induced vibration shifts the optical path, alters the sample cell illumination pattern, and degrades count accuracy at low particle concentrations. Dynamically balanced impellers and anti-vibration mounts are standard in precision counters.
  • Long, maintenance-free service life — particle counters used in pharmaceutical QC and semiconductor fab monitoring cannot be easily removed for service without documentation, downtime, and requalification. Blower MTBF above 20,000 hours at operating conditions is the practical minimum for 5-year service-interval instruments.
  • 24V DC operation for instrument supply rail compatibility — most particle counter platforms operate from 24V regulated supplies sourced from a laboratory power brick or rack instrument power bus. 24V-native blowers avoid the efficiency loss and complexity of a 12V converter stage inside the instrument.

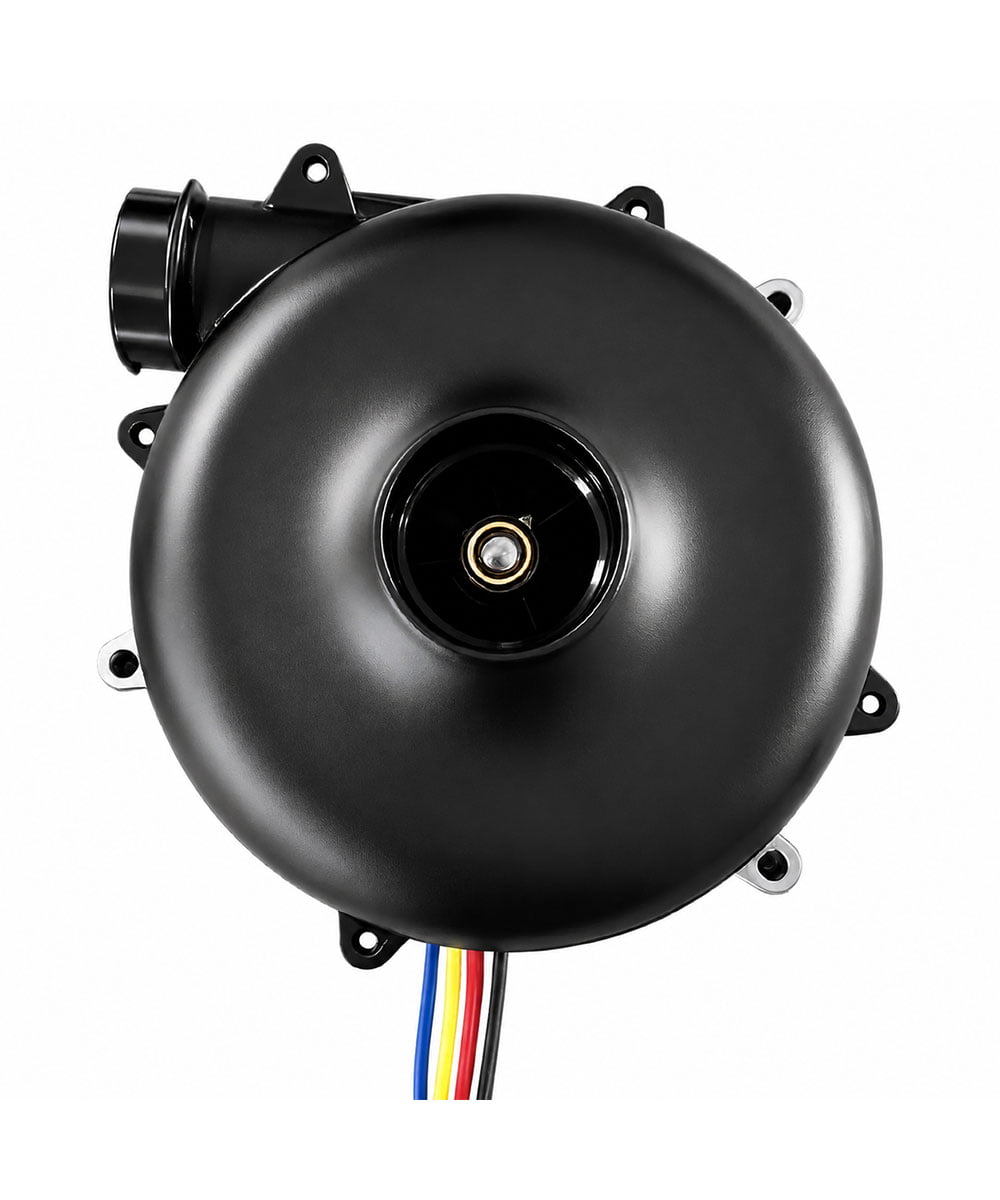

The Herays HR8050H24B is a 24V DC centrifugal BLDC blower designed for precision air sampling applications including particle counters, environmental monitors, and cleanroom instrumentation. It serves as a reliable alternative to the AMP45 and similar sampling blowers used in professional air quality instruments.

HR8050H24B key specifications:

  • Voltage: 24V DC
  • Motor type: BLDC (brushless DC), zero brush debris
  • Bearing: sealed ball bearing, zero lubricant vapor emission
  • Flow rate: stable across 15–40°C operating range within ±3%
  • Noise: low acoustic emission suitable for laboratory environments
  • Tachometer output: 3-wire, 2 pulses per revolution for instrument speed monitoring
  • Certifications: CE, RoHS

The HR8050H24B is a drop-in alternative to the AMP45 and similar 24V sampling blowers in terms of electrical interface and mounting dimensions. Engineering samples are available with flow rate characterization data for instrument validation.

How does the HR8050H24B compare to the AMP45 in sample flow accuracy? Both are 24V BLDC centrifugal blowers with comparable impeller diameter and pressure-flow characteristics. The HR8050H24B uses sealed ball bearings which provide stable flow rate across temperature variations and over the blower’s service life. Customers transitioning from the AMP45 typically complete instrument flow validation with no firmware changes required beyond confirming the PWM frequency compatibility of the speed controller.

How do I verify sample flow rate after installing a replacement blower? Use a NIST-traceable primary flow calibrator connected at the instrument inlet to measure actual volumetric flow rate at the specified operating conditions. Adjust the blower PWM setpoint in the instrument firmware (if adjustable) to bring measured flow within the instrument’s specification band. Document the pre- and post-replacement flow rates in the instrument maintenance log per GMP or cleanroom SOP requirements.

What causes sample flow rate to drift in a particle counter over time? The most common cause is gradual filter loading on the blower inlet filter (if present), which increases flow restriction and reduces sample flow. The second most common cause is bearing wear in the blower, which causes speed variation at a given PWM setpoint. Regular filter replacement per manufacturer schedule and annual blower speed verification prevent flow drift from becoming a count accuracy issue.

Contact Herays for HR8050H24B samples, flow characterization data sheets, and OEM supply for particle counter and environmental monitoring instrument manufacturers.
