Problem Space

Industry Challenges

Understanding the specific thermal and environmental demands of Air Cushion Machine Blower environments is the foundation of every Herays solution.

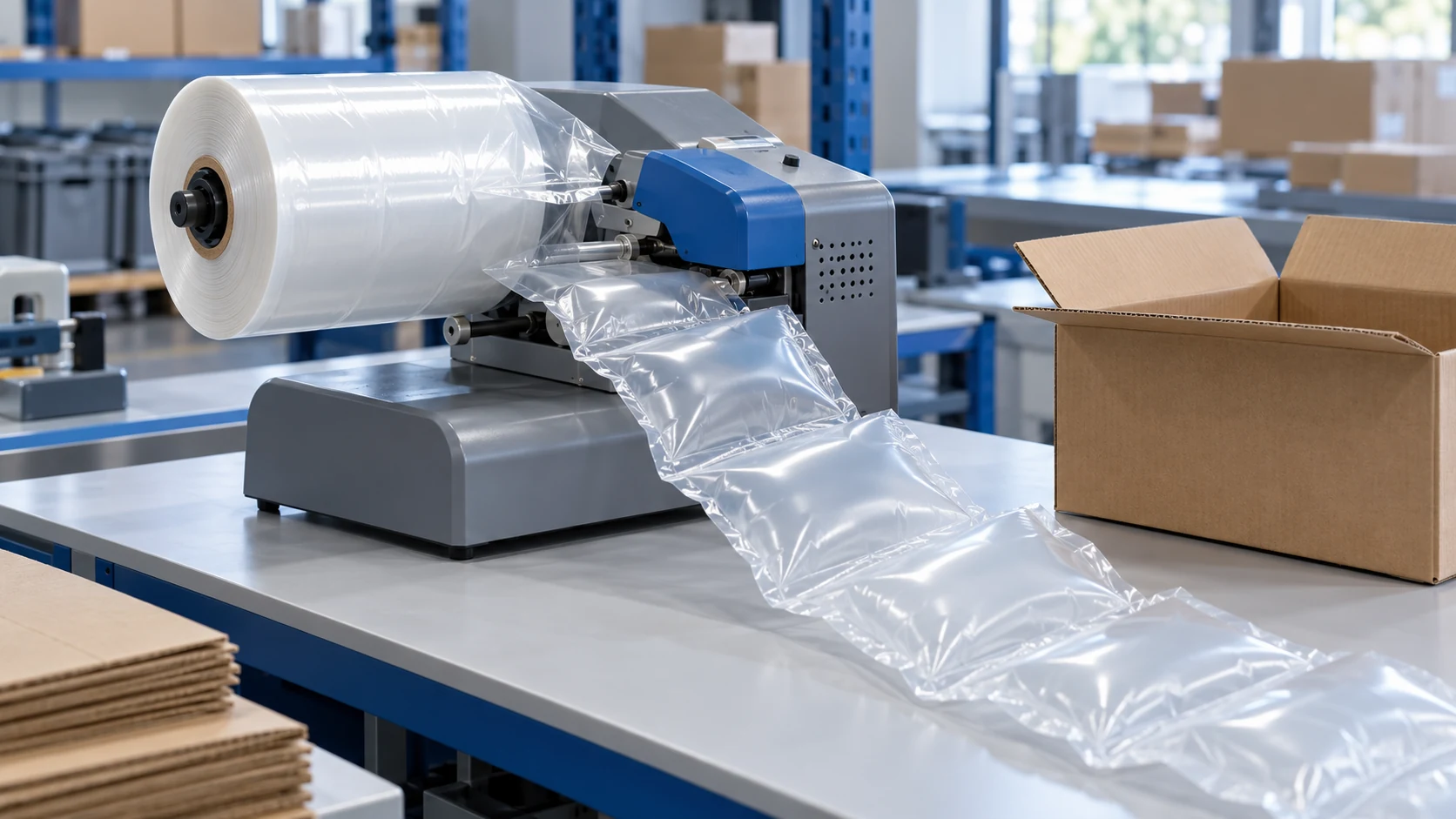

Air cushion packaging machines generate protective air-filled cushions, pillows, and tubes on demand by inflating and sealing polyethylene film at high speed. The blower in an air cushion machine must deliver continuous high-volume airflow at low pressure into a film inflation chamber, maintaining consistent fill pressure to produce uniformly inflated cushions without overpressure bursts or underfilled voids. Unlike electronics cooling where airflow cools components, the air cushion machine blower is the product — its performance directly determines packaging quality and machine output rate.

  • High volume, low pressure airflow — air cushion inflation requires large volumes of air at modest pressure (typically 0.5–3 kPa). Centrifugal blowers in the 30–150 L/min range are the correct topology; axial fans cannot generate sufficient pressure for reliable cushion inflation.
  • Continuous duty cycle — packaging machines run production shifts of 8–16 hours continuously. The blower motor must be rated for 100% duty cycle at operating ambient temperature without thermal derating.
  • Consistent pressure for uniform cushion fill — fill pressure variation above ±10% produces visible variation in cushion firmness and dimensional consistency. Speed-stable blowers with closed-loop pressure control produce better packaging quality than open-loop fixed-speed designs.
  • Low noise for warehouse and fulfillment center environments — packaging operations are occupied by workers who may spend full shifts near the machine. Blower noise above 60 dBA at 1 m is uncomfortable for sustained exposure; quieter designs reduce worker fatigue and comply with occupational noise limits.
  • 24V DC operation for integration with machine control systems — air cushion machines typically run on 24V control architecture, matching the standard for industrial packaging machinery PLC control systems.

Herays centrifugal blowers in the 24V DC range provide the high-volume, low-pressure airflow required for air cushion inflation applications, with continuous duty ratings and consistent speed stability for uniform fill pressure.

Typical blower specifications for air cushion machine evaluation:

  • Topology: Centrifugal (radial) blower, BLDC motor
  • Voltage: 24V DC
  • Airflow range: 30–150 L/min at operating pressure
  • Pressure: 0.5–5 kPa static pressure at rated flow
  • Duty cycle: 100% continuous
  • Noise: below 55 dBA at rated speed at 1 m

Contact Herays with your machine’s required fill flow rate, operating pressure, and duty cycle for specific blower recommendations and engineering samples.

How does blower speed affect air cushion fill quality? Overspeed causes overpressure and burst cushions; underspeed causes underfilled, soft cushions that provide inadequate protection. The optimal operating point is typically 70–85% of maximum blower speed, providing headroom for pressure regulation while keeping the blower within its most efficient operating region. A pressure feedback loop from a sensor at the film inflation point provides the most consistent fill quality across varying film thicknesses and ambient temperatures.

How often should air cushion machine blowers be serviced? For BLDC (brushless DC) centrifugal blowers in clean indoor environments, bearing service intervals of 10,000–20,000 operating hours are typical. Running the machine with clean, dry inlet air (avoiding plastic film dust and heat-seal adhesive fumes in the blower intake) significantly extends bearing and motor life. Schedule a bearing inspection at each annual machine preventive maintenance interval.

Can the same blower be used for both air cushion pillows and air tube packaging? The inflation pressure requirements differ: cushion pillows typically need 1–2 kPa; air tubes for heavier items need 2–4 kPa. If the machine produces both, specify a blower rated for the higher pressure requirement and regulate down for pillow production via speed control. Running at reduced speed for lower-pressure applications reduces noise and extends blower life.

Contact Herays for air cushion machine blower engineering samples, batch supply, and OEM packaging machine manufacturing support.
