DC Axial Fan Active

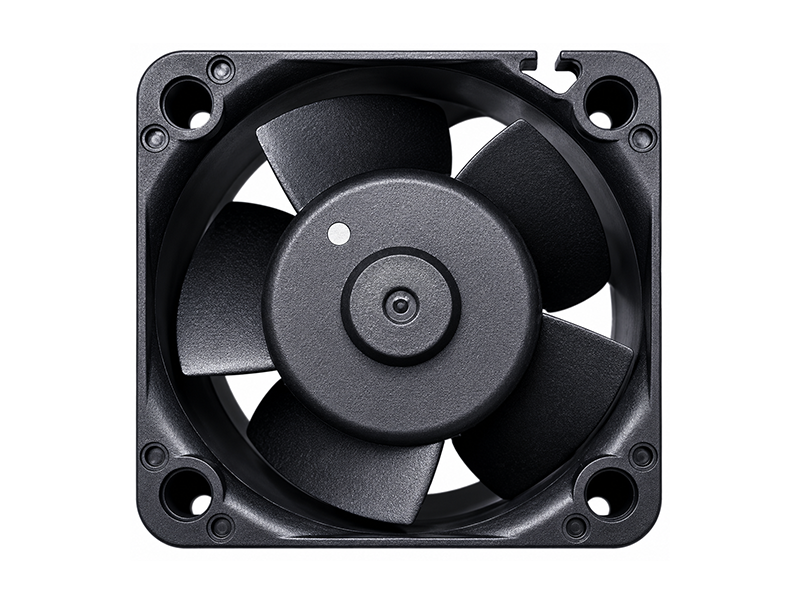

HR4020MD4(2linefunction) DC Axial Fan 40x40x20mm

HR4020MD4(2linefunction) Copied!
CE RoHS
Voltage
48V
Dimensions
40x40x20mm

Match the fan to your installation space, airflow requirement and acoustic target. Confirm the exact configuration and its operating point for your equipment.

Specifications

How to interpret airflow and static pressure

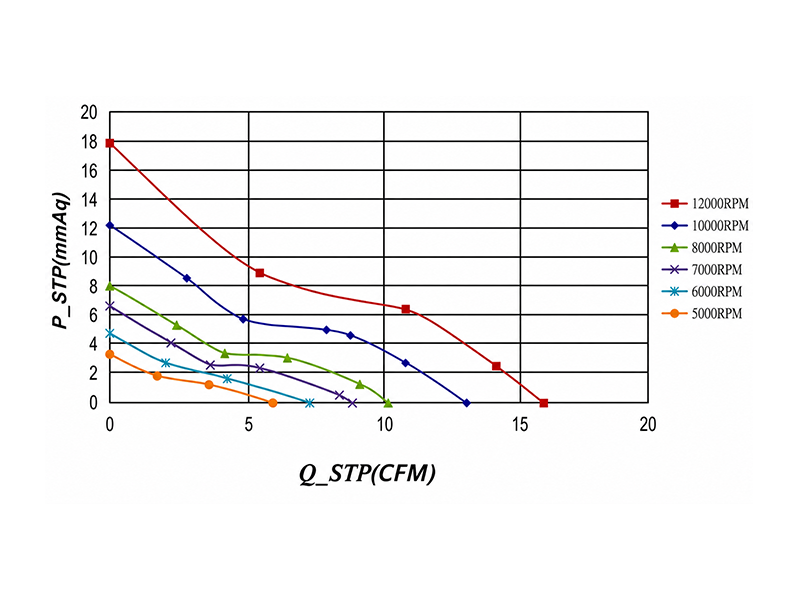

Maximum airflow is measured at zero static pressure. Maximum static pressure is measured at zero airflow. These are separate endpoints of the performance curve, not values delivered simultaneously.

The installed operating point depends on the fan curve and the resistance of your ducts, filters and enclosure. Select the exact model and voltage, then check the required airflow at your system pressure on its P-Q curve.

Before ordering, confirm dimensions, voltage range, connector, control functions and noise requirements for your selected variant. Use its datasheet and confirm any unspecified test conditions with HERAYS.

Parameter Value Unit
Series type BY4020
Dimensions 40x40x20mm mm
Operating voltage 40~165 VDC
Frame Type Black PBT (UL94V-0)
Impeller Black PBT (UL94V-0)
Bearing Two Ball & (Sleeve or Hydraulic Bearing)
Operation Temperature -10℃~70℃ (Ordinary humidity)
Storage Temperature -40℃~80℃ (Ordinary humidity)
Lead wire (+) Red,(-) Black,(FG/RDYello,(PWM) Blue
Safety CE approved, RoHS
Ingress of Protection IP42 or IP55
Unit Weight :28g

Available Functions

Motors Protection Signal Output Speed Control
RP AS CS CL OV SS FG RD/RD/b LD PPWM VPWM TC RC
● ● ● ● ● ● ●

● Supported

Bearing Type
Dual Ball
Connector
Bare Leads
IP Rating
IP55
Target Application
Industrial
Product selection

Is HR4020MD4(2linefunction) right for your design?

Match the fan to your installation space, airflow requirement and acoustic target. Use the checks below to shortlist the correct configuration before requesting a quote or sample.

Cooling within your installation space

Evaluate this axial fan for equipment ventilation or local component cooling. Check your mounting space and the resistance of the actual enclosure, grille or filter.

Check the mechanical fit

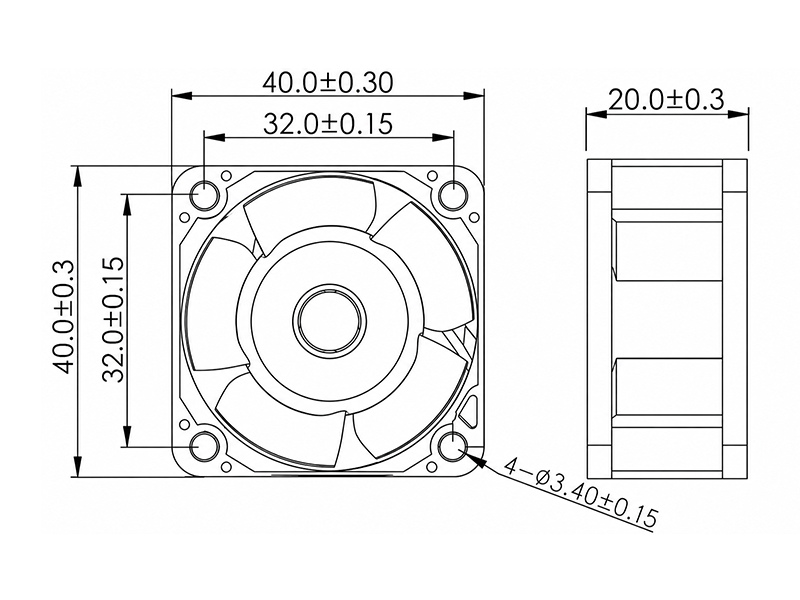

The listed dimensions are 40x40x20mm. Verify hole positions, clearance and airflow direction against the drawing before installation.

Match the power supply

This page lists a 48V rated supply. Check the selected model’s operating voltage, current and power before connecting it to your system.

Performance & acoustics

Choose the operating point your equipment needs

Prioritize airflow

Compare the listed airflow with the flow required at your system’s operating pressure.

Balance airflow and noise

Evaluate noise in the installed equipment, including the enclosure, mounting and operating speed.

Account for system resistance

Use the Performance section to compare flow at your required pressure. Send your target operating point with your inquiry.

Maximum airflow and maximum static pressure describe different points on a P–Q curve. They are not achieved simultaneously. Select one complete model variant and evaluate it with your actual air path.

Design integration

Confirm the configuration before ordering

InstallationReview the Dimensions section, then confirm your mounting interface, outlet clearance and connector pinout.
Electrical supplyThis page lists a 48V rated supply. Check the selected model’s operating voltage, current and power before connecting it to your system. Include startup requirements and supply tolerances in your inquiry.
Operating environmentListed operating temperature: -10℃~70℃ (Ordinary humidity). Share your actual ambient conditions, dust, moisture and duty cycle for configuration review.
Bearing selectionListed bearing information: Two Ball & (Sleeve or Hydraulic Bearing). Confirm the ordered bearing option, mounting orientation and expected operating conditions.
Control & monitoringListed functions: Reverse polarity protection; Automatic restart; Constant speed; Soft start; Tachometer signal output; Alarm signal output; PWM speed control. Confirm the functions, signal levels, wire count and pinout of your selected version. Do not assume every connector or wiring option includes every listed function.
Project requirementsTell us your cable length, connector, speed-control and protection requirements. Ask which options can be supplied for this model, and request the relevant compliance documents for the ordered configuration.
Technical documentsAsk for the datasheet for the exact model and configuration in your inquiry.
