| Parameter | Value | Unit |
|---|---|---|
| Series type | BY6038 | |

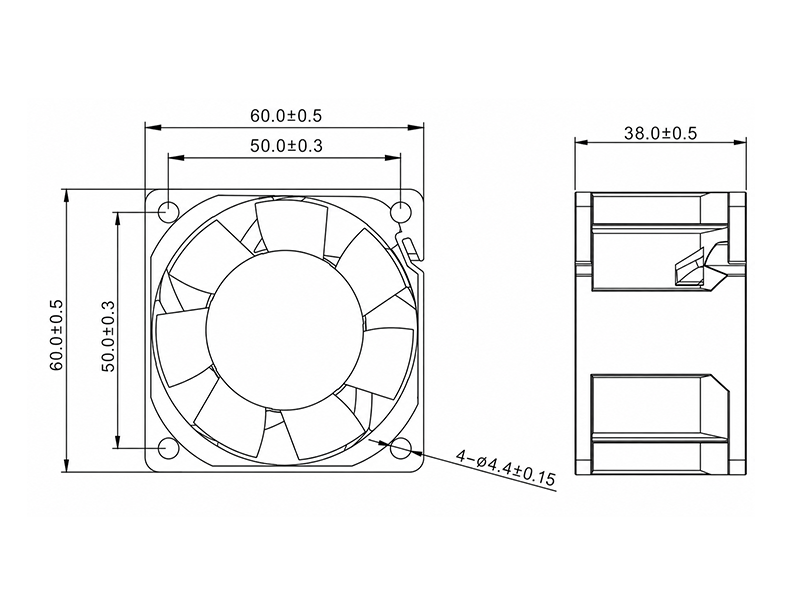

| Dimensions | 60x60x38mm | mm |
| Frame Type | Black PBT (UL94V-0) | |
| Impeller | Black PBT (UL94V-0) | |
| Bearing | Two Ball & (Sleeve or Hydraulic Bearing) | |
| Operation Temperature | -10℃~70℃ (Ordinary humidity) | |
| Storage Temperature | -40℃~80℃ (Ordinary humidity) | |
| Lead wire | (+) Red,(-) Black,(FG/RDYello，(PWM) Blue | |
| Safety | CE approved, RoHS | |
| Ingress of Protection | IP42 or IP55 | |
| Unit Weight | ：105g |
| Model No. | Grade | Op. Voltage (VDC) |
Current (A) |
Power (W) |
Speed (RPM) |
Air Flow (CFM) |
Air Flow (m³/min) |
Static Pressure (mmH₂O) |
Static Pressure (Pa) |
Noise (dBA) |
|---|---|---|---|---|---|---|---|---|---|---|
| HR6038HD2(-SF) | HD | 15~30 | 0.6 | 14.4 | 12,000 | 49.84 | 1.41 | 47.47 | 465.52 | 44.4 |
| HR6038MD2(-SF) | MD | 15~30 | 0.4 | 9.6 | 9,000 | 37.44 | 1.06 | 27.84 | 273.02 | 35.9 |
| HR6038LD2(-SF) | LD | 15~30 | 0.1 | 2.4 | 6,000 | 24.53 | 0.69 | 12.23 | 119.94 | 29 |
HD = High Speed | MD = Medium Speed | LD = Low Speed
| Motors Protection | Signal Output | Speed Control | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RP | AS | CS | CL | OV | SS | FG | RD/RD/b | LD | PPWM | VPWM | TC | RC |
| ● | ● | ● | ○ | ○ | ● | ● | ● | ○ | ● | ○ | ○ | ○ |
● Supported ○ Not available
