| Parameter | Value | Unit |
|---|---|---|
| Series type | BY7025 | |

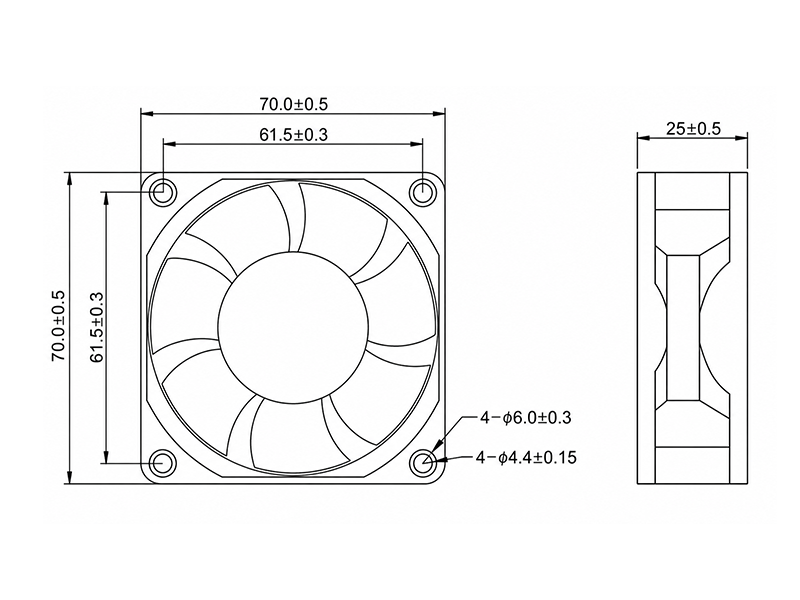

| Dimensions | 70x70x25mm | mm |
| Frame Type | Black PBT (UL94V-0) | |
| Impeller | Black PBT (UL94V-0) | |
| Bearing | Two Ball & (Sleeve or Hydraulic Bearing) | |
| Operation Temperature | -10℃~70℃ (Ordinary humidity) | |
| Storage Temperature | -40℃~80℃ (Ordinary humidity) | |
| Lead wire | (+) Red,(-) Black,(FG/RDYello，(PWM) Blue | |
| Safety | CE approved, RoHS | |
| Ingress of Protection | IP42 or IP55 | |
| Unit Weight | ：80g |
| Model No. | Grade | Op. Voltage (VDC) |
Current (A) |
Power (W) |
Speed (RPM) |
Air Flow (CFM) |
Air Flow (m³/min) |
Static Pressure (mmH₂O) |
Static Pressure (Pa) |
Noise (dBA) |
|---|---|---|---|---|---|---|---|---|---|---|
| HR7025HD2(-SF) | HD | 15~30 | 0.17 | 4.08 | 4,500 | 41.8 | 1.18 | 4.9 | 48.05 | 42.2 |
| HR7025MD2(-SF) | MD | 15~30 | 0.09 | 2.16 | 3,500 | 33.3 | 0.94 | 3.75 | 36.77 | 34.7 |
| HR7025LD2(-SF) | LD | 15~30 | 0.06 | 1.44 | 2,500 | 24.4 | 0.69 | 2.01 | 19.71 | 27.5 |
HD = High Speed | MD = Medium Speed | LD = Low Speed
| Motors Protection | Signal Output | Speed Control | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RP | AS | CS | CL | OV | SS | FG | RD/RD/b | LD | PPWM | VPWM | TC | RC |
| ● | ● | ● | ○ | ○ | ● | ● | ● | ○ | ● | ○ | ○ | ○ |
● Supported ○ Not available
