| Parameter | Value | Unit |
|---|---|---|
| Series type | BY8038 | |

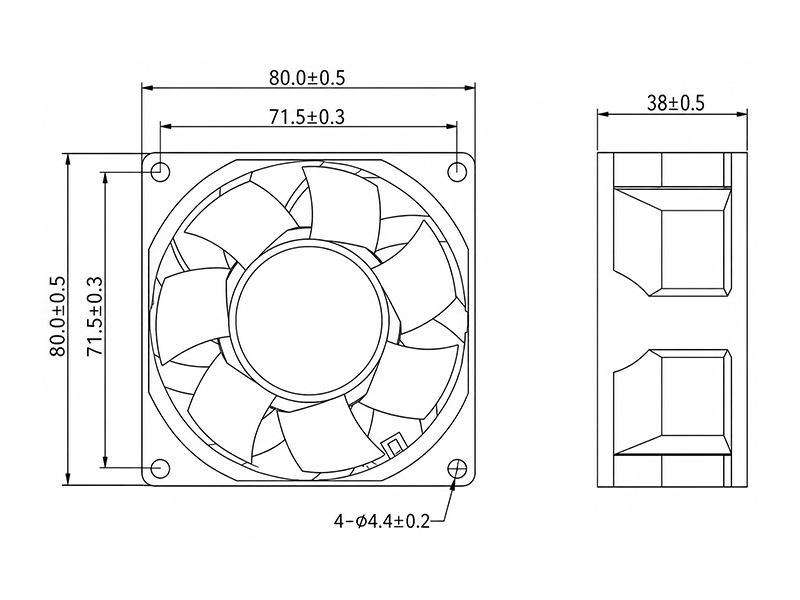

| Dimensions | 80x80x38mm | mm |
| Frame Type | Black PBT (UL94V-0) | |
| Impeller | Black PBT (UL94V-0) | |
| Bearing | Two Ball & (Sleeve or Hydraulic Bearing) | |
| Operation Temperature | -10℃~70℃ (Ordinary humidity) | |
| Storage Temperature | -40℃~80℃ (Ordinary humidity) | |
| Lead wire | (+) Red,(-) Black,(FG/RDYello，(PWM) Blue | |
| Safety | CE approved, RoHS | |
| Ingress of Protection | IP42 or IP55 | |
| Unit Weight | ：180g |
| Model No. | Grade | Op. Voltage (VDC) |
Current (A) |
Power (W) |
Speed (RPM) |
Air Flow (CFM) |
Air Flow (m³/min) |
Static Pressure (mmH₂O) |
Static Pressure (Pa) |
Noise (dBA) |
|---|---|---|---|---|---|---|---|---|---|---|
| HR8038HD2 | HD | 15~30 | 1.6 | 38.4 | 13,000 | 112.19 | 3.18 | 65.14 | 638.81 | 70.9 |
| HR8038MD2 | MD | 15~30 | 0.7 | 16.8 | 10,000 | 82.68 | 2.34 | 45.29 | 444.14 | 63.9 |
| HR8038LD2 | LD | 15~30 | 0.35 | 8.4 | 8,000 | 65.67 | 1.86 | 31.38 | 307.73 | 56.2 |
HD = High Speed | MD = Medium Speed | LD = Low Speed
| Motors Protection | Signal Output | Speed Control | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RP | AS | CS | CL | OV | SS | FG | RD/RD/b | LD | PPWM | VPWM | TC | RC |
| ● | ● | ● | ● | ● | ● | ● | ● | ○ | ● | ○ | ● | ○ |
● Supported ○ Not available
