DC Blower Fan Active

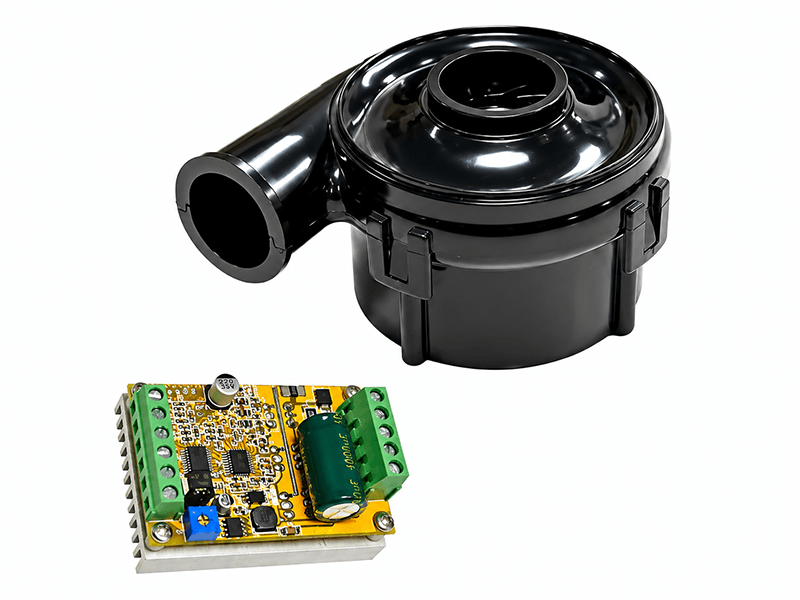

HR5025H24B DC Brushless Blower 50×25mm B Type

HR5025H24B Copied!
CE RoHS
Voltage
24V
Dimensions
50x25mm
Airflow
9.5 CFM
Static pressure
412.8 mmH₂O
Noise
67 dB(A)
Speed
37,000 RPM

Match the blower to your air path, pressure requirement and power supply. Confirm the exact configuration and its operating point for your equipment.

Specifications

How to interpret airflow and static pressure

Maximum airflow is measured at zero static pressure. Maximum static pressure is measured at zero airflow. These are separate endpoints of the performance curve, not values delivered simultaneously.

The installed operating point depends on the fan curve and the resistance of your ducts, filters and enclosure. Select the exact model and voltage, then check the required airflow at your system pressure on its P-Q curve.

Before ordering, confirm dimensions, voltage range, connector, control functions and noise requirements for your selected variant. Use its datasheet and confirm any unspecified test conditions with HERAYS.

Parameter Value Unit
Dimensions 50x25mm mm
Type B Type
Rated voltage 24 V
Operating voltage 5~30 V
Rated current 1.0 A
Rated input power 24.0 W
Speed 37000 RPM
Maximum airflow 9.5 CFM
Maximum static pressure 412.8 mmH2O
Noise 67.0 dBA
Application Portable ventilator
Bearing Ball / configurable bearing code per our catalog
Frame Plastic, UL94V-0 where specified
Impeller Plastic, UL94V-0 where specified
Product selection

Is HR5025H24B right for your design?

Match the blower to your air path, pressure requirement and power supply. Use the checks below to shortlist the correct configuration before requesting a quote or sample.

Air delivery through a defined air path

Consider this blower when your design needs air routed through an outlet, duct or other defined air path. Share the required flow and system resistance so the operating point can be checked.

Check the mechanical fit

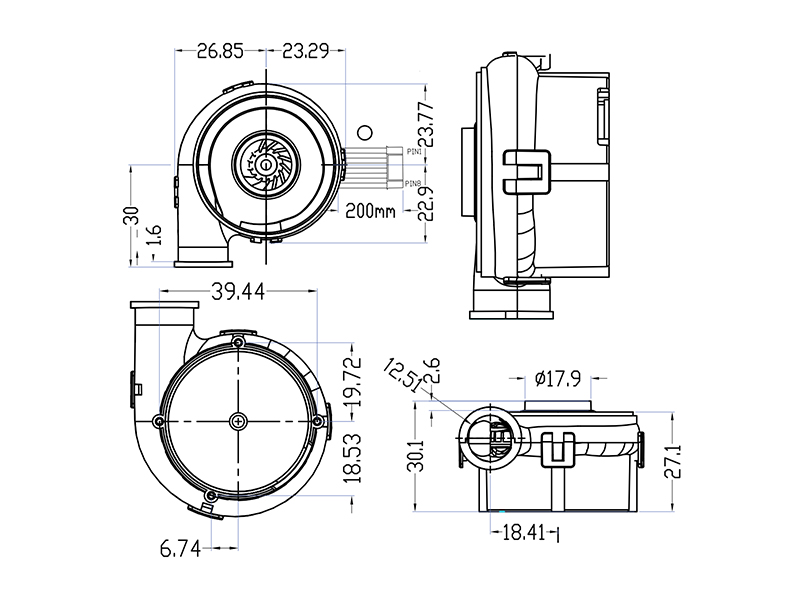

The listed dimensions are 50x25mm. Verify hole positions, clearance and airflow direction against the drawing before installation.

Match the power supply

This page lists a 24V rated supply. Check the selected model’s operating voltage, current and power before connecting it to your system.

Performance & acoustics

Choose the operating point your equipment needs

Prioritize airflow

Compare the listed airflow with the flow required at your system’s operating pressure.

Balance airflow and noise

Evaluate noise in the installed equipment, including the enclosure, mounting and operating speed.

Account for system resistance

Use the Performance section to compare flow at your required pressure. Send your target operating point with your inquiry.

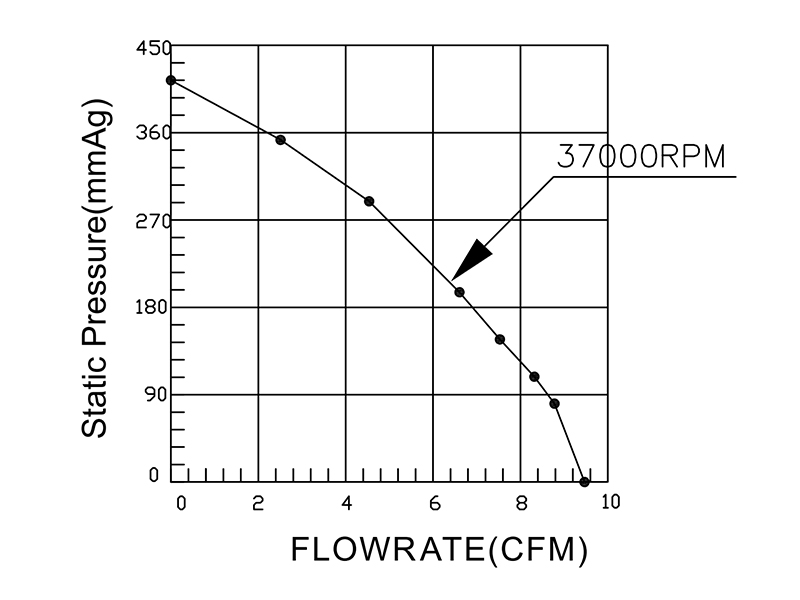

Maximum airflow and maximum static pressure describe different points on a P–Q curve. They are not achieved simultaneously. Select one complete model variant and evaluate it with your actual air path.

Design integration

Confirm the configuration before ordering

InstallationReview the Dimensions section, then confirm your mounting interface, outlet clearance and connector pinout.
Electrical supplyThis page lists a 24V rated supply. Check the selected model’s operating voltage, current and power before connecting it to your system. Include startup requirements and supply tolerances in your inquiry.
Operating environmentShare ambient temperature, humidity, dust or moisture exposure and duty cycle. Confirm temperature and ingress protection requirements for the exact configuration.
Bearing selectionListed bearing information: Ball / configurable bearing code per our catalog. Confirm the ordered bearing option, mounting orientation and expected operating conditions.
Control & monitoringConfirm the functions, signal levels, wire count and pinout of your selected version. Do not assume every connector or wiring option includes every listed function.
Project requirementsTell us your cable length, connector, speed-control and protection requirements. Ask which options can be supplied for this model, and request the relevant compliance documents for the ordered configuration.
Technical documentsAsk for the datasheet for the exact model and configuration in your inquiry.
From selection to production

Validate the fit before committing to volume

  1. Define the configuration. Send HR5025H24B, your selected speed variant, supply voltage and installation requirements.
  2. Request a sample proposal. Ask about sample availability, cost and delivery. Confirm the drawing, wiring and required control functions before evaluation.
  3. Evaluate in your equipment. Check airflow or pressure, component temperatures, installed noise, startup and control behavior under your intended operating conditions.
  4. Confirm the production order. Agree on the exact configuration, quantity, compliance documents, packaging, lead time and warranty terms in the quotation.
Selection questions

Frequently asked questions about HR5025H24B

Which version should I choose?

Compare the listed airflow with the flow required at your system’s operating pressure. Evaluate noise in the installed equipment, including the enclosure, mounting and operating speed. Share your thermal or airflow target, installation space and noise limit if you need help shortlisting a version.

Will the listed airflow be available inside my equipment?

Installed airflow depends on system resistance and the selected operating point. Use the Performance section to compare flow at your required pressure. Send your target operating point with your inquiry. Test the selected version with the actual enclosure, grille, filter or duct.

Can I change the connector, cable or speed-control function?

Include your connector specification, cable length, pinout and control requirements in the inquiry. We will review which options are available for HR5025H24B and confirm the configuration before quotation.

How do I verify service life and compliance?

Request the reliability information, lifetime test conditions and compliance documents applicable to the exact model and configuration. Share operating temperature, duty cycle and your market requirements so the information can be reviewed for your project.

What are the MOQ, lead time and warranty terms?

Ask for sample and production quotations with your quantity, configuration and destination. Confirm MOQ, availability, production lead time and warranty terms in the quotation for this order.

Get a useful quotation

Tell us what HR5025H24B needs to do

Send the information you already have. If your specification is still developing, describe the equipment and the problem you need to solve.

  • Model and preferred speed variant
  • Supply voltage and control requirements
  • Installation space and mounting drawing
  • Target airflow, pressure or cooling requirement
  • Noise limit and operating environment
  • Sample quantity, production volume and destination

Ask for a model recommendation, configuration review, technical documents and a quotation covering price and delivery.
