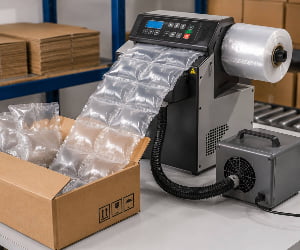

Air Cushion Blower and Air Mat Systems
DC blower options for air cushion products, air mats, support surfaces, and compact inflation systems.
Learn more →

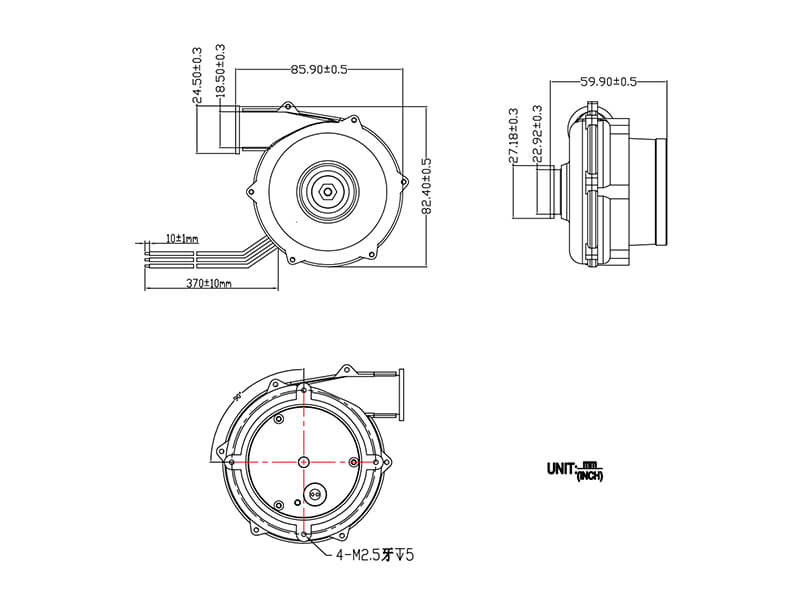

HR8060H24B DC Brushless Blower 80×60mm E Type
| Parameter | Value | Unit |
|---|---|---|
| Dimensions | 80×60mm | mm |
| Type | E Type | |
| Rated voltage | 24 | V |
| Operating voltage | 19~26.5 | V |
| Rated current | 7.7 | |
| Rated input power | 184.8 | W |
| Speed | 48000 | RPM |

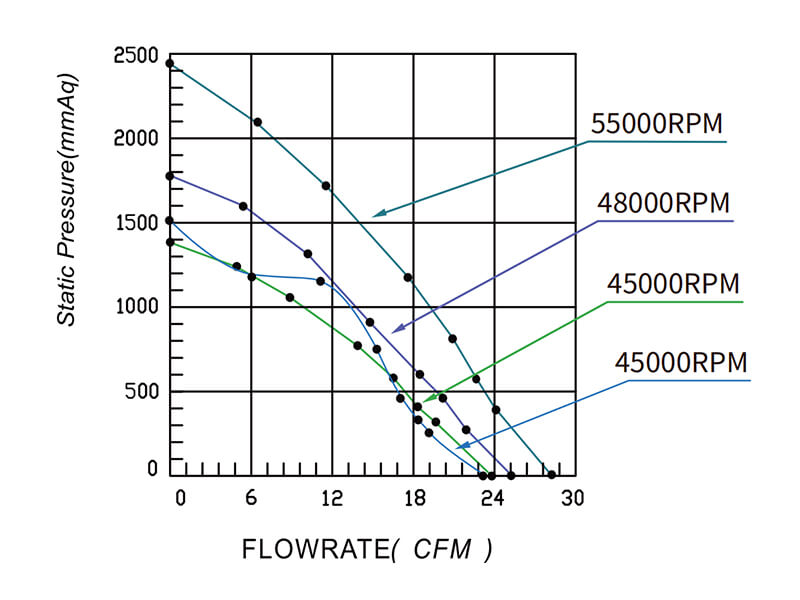

| Maximum airflow | 25.1 | CFM |
| Maximum static pressure | 1822.5 | mmH2O |
| Noise | 88.3 | dBA |
| Application | Air cushion blower、Air mold blower | |
| Bearing | Ball / configurable bearing code per our catalog | |
| Frame | Aluminum (Flammability:UL94V-0) | |
| Impeller | Aluminum (Flammability:UL94V-0) |
