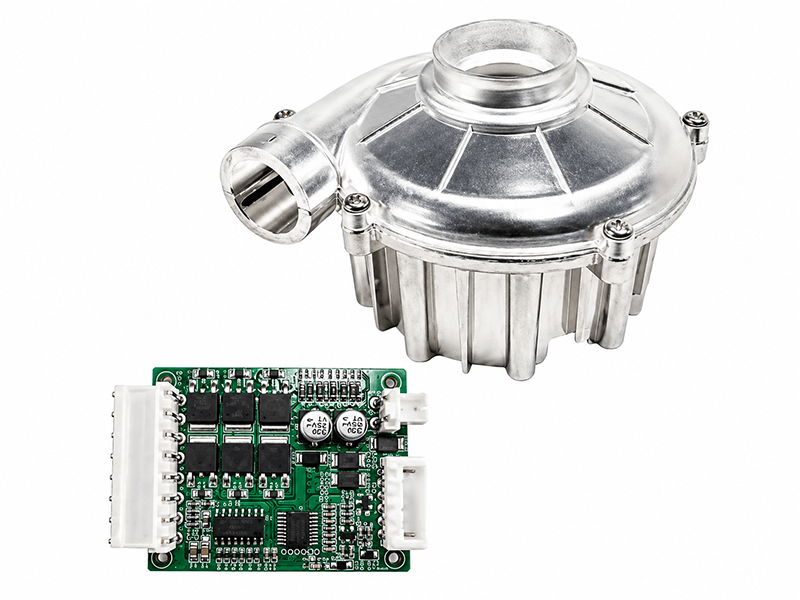

HR7050H24B DC Brushless Blower 70×65×40mm B Type
| Parameter | Value | Unit |
|---|---|---|

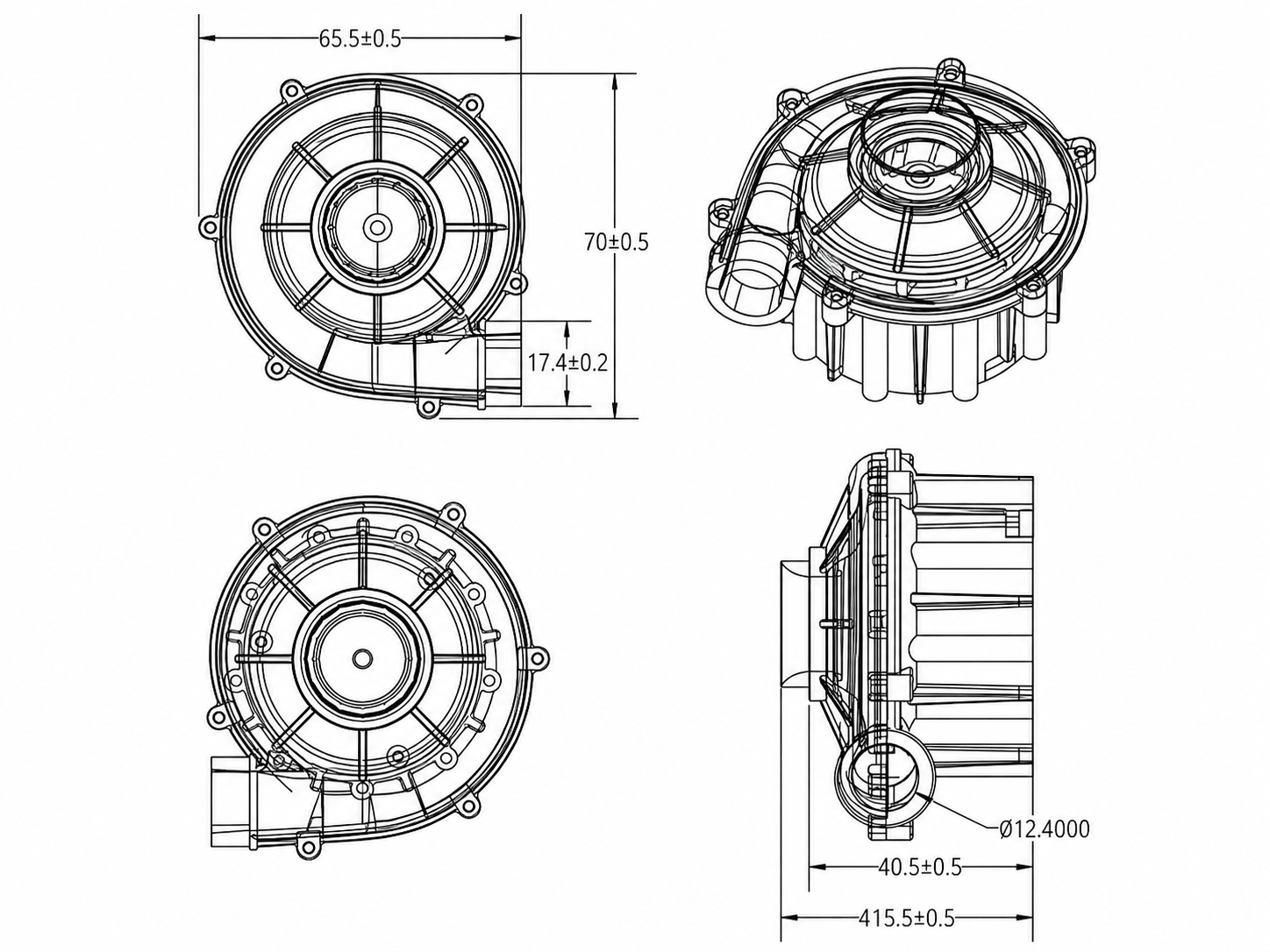

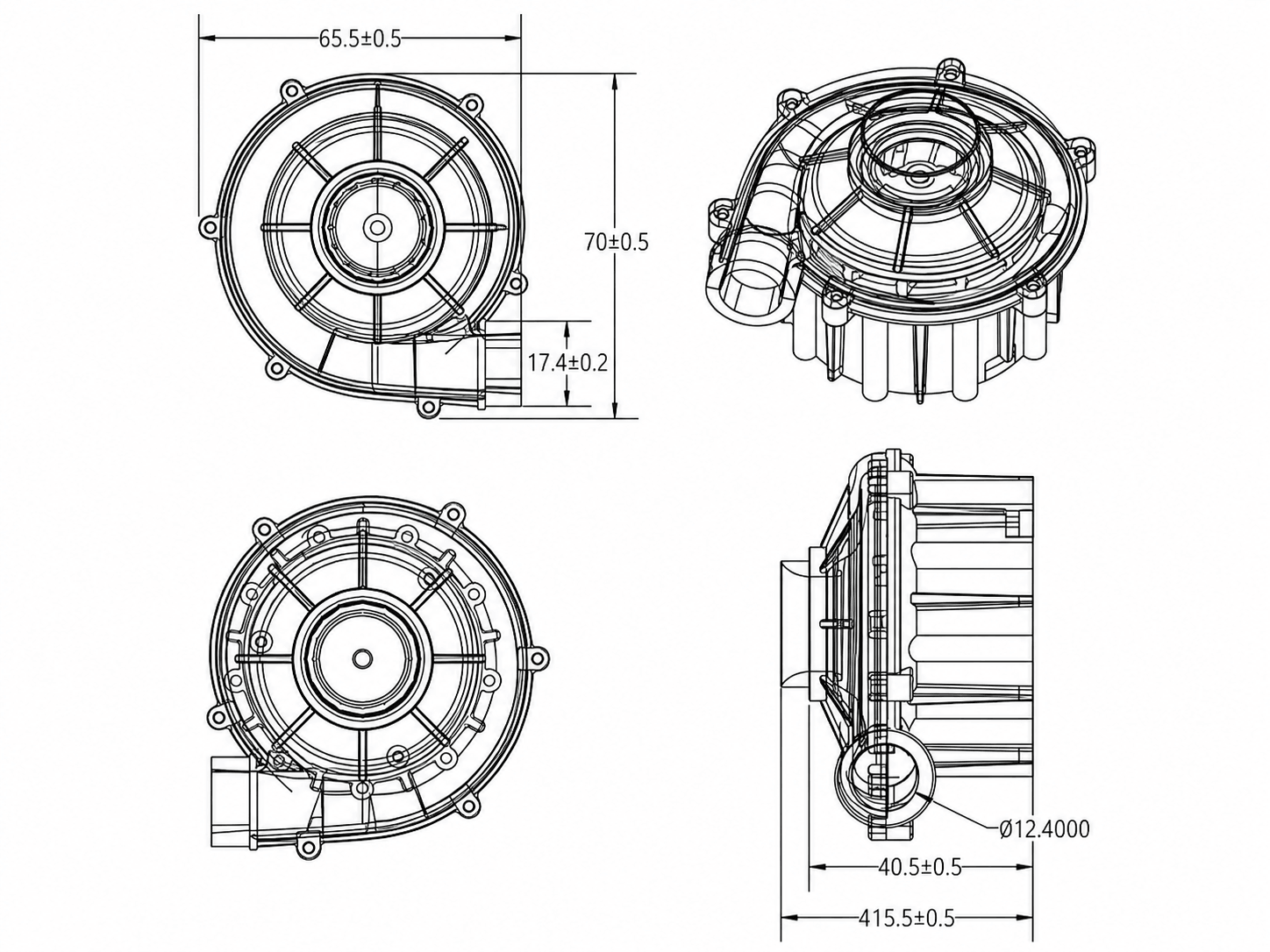

| Dimensions | 70×65×40mm | mm |
| Type | B Type | |
| Rated voltage | 24 | V |
| Operating voltage | 12~25 | V |
| Rated current | 3.5 | |
| Rated input power | 84 | W |
| Speed | 37000 | RPM |

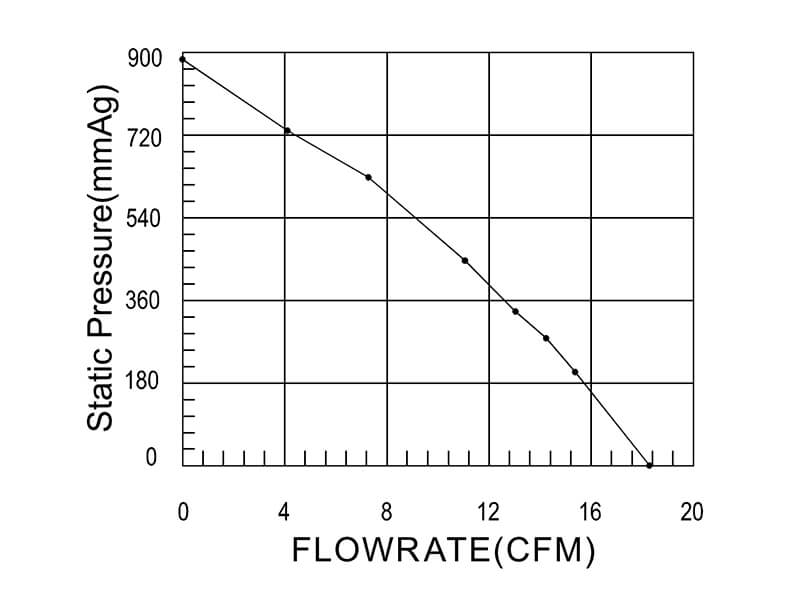

| Maximum airflow | 18.36 | CFM |
| Maximum static pressure | 884.75 | mmH2O |
| Noise | 70.0 | dBA |
| Application | air cushion machine | |
| Bearing | Ball / configurable bearing code per our catalog | |
| Frame | Aluminum (Flammability:UL94V-0) | |
| Impeller | Aluminum (Flammability:UL94V-0) |
