CPAP and Sleep Therapy Airflow
Compact blower fan options for CPAP-related airflow modules, sleep therapy devices, and low-noise air delivery systems.
Learn more →

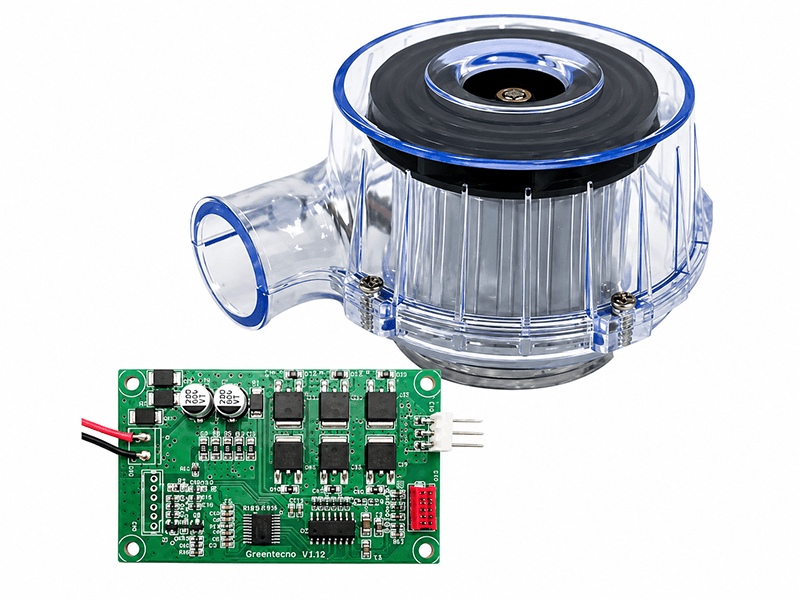

HR7050H24B DC Brushless Blower 77×66×57mm D Type
| Parameter | Value | Unit |
|---|---|---|
| Dimensions | 77×66×57mm | mm |
| Type | D Type | |
| Rated voltage | 24 | V |
| Operating voltage | 18~26.5 | V |
| Rated current | 1.5 | |
| Rated input power | 36 | W |
| Speed | 32000 | RPM |
| Maximum airflow | 16.8 | CFM |
| Maximum static pressure | 488.8 | mmH2O |
| Noise | 71.3 | dBA |
| Application | CPAP,APAP,Ventilator | |
| Bearing | Ball / configurable bearing code per our catalog | |
| Frame | Plastic, UL94V-0 where specified | |
| Impeller | Plastic, UL94V-0 where specified |
Submit your requirements for HR7050H24B. Our team responds within 24 hours with pricing and lead time.
