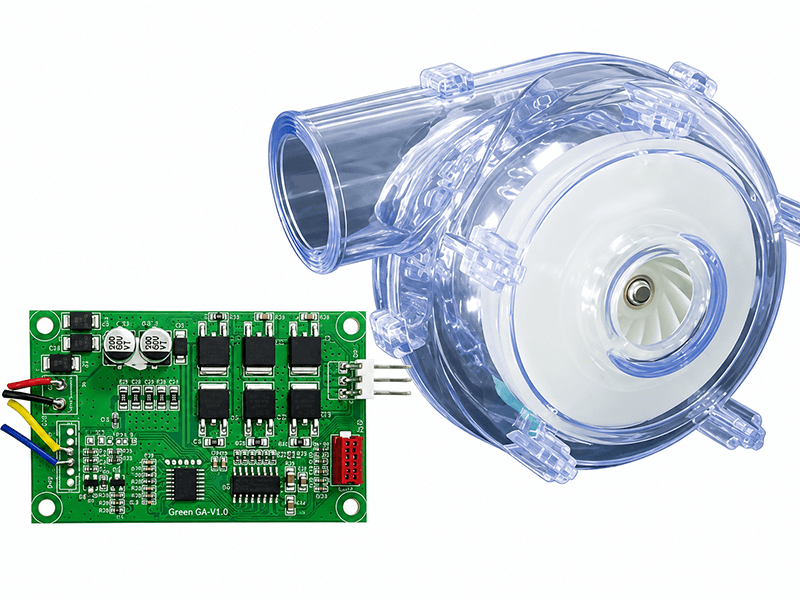

HR7060H24B DC Brushless Blower 70×60mm K Type
| Parameter | Value | Unit |
|---|---|---|

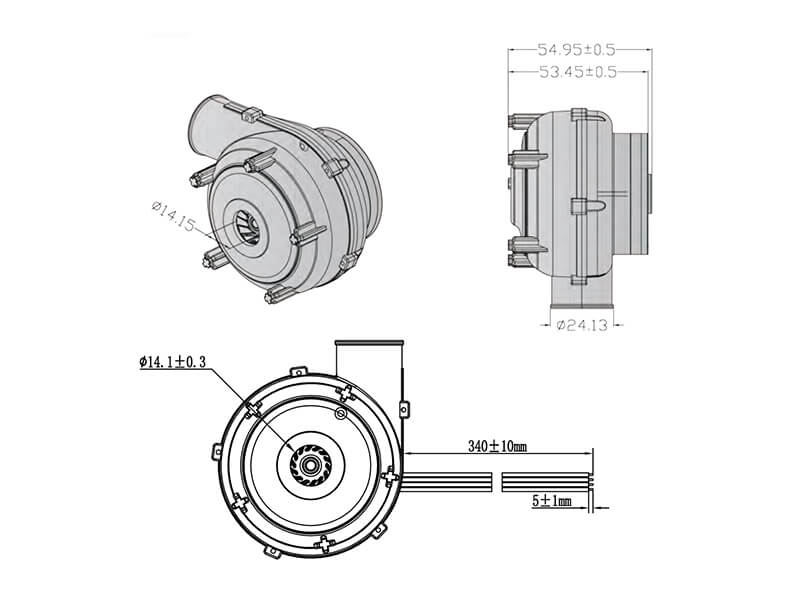

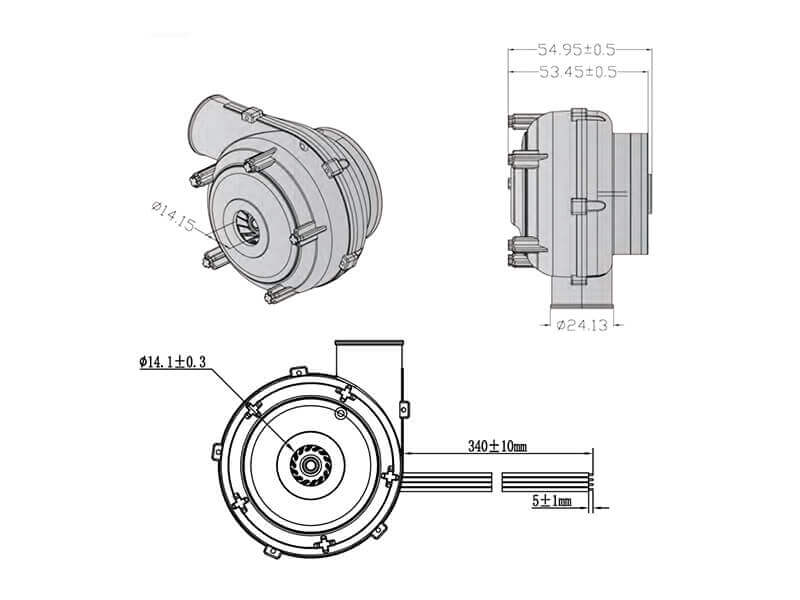

| Dimensions | 70×60mm | mm |
| Type | K Type | |
| Rated voltage | 24 | V |
| Operating voltage | 18~40 | V |
| Rated current | 2.2 | |
| Rated input power | 52.8 | W |
| Speed | 36000 | RPM |

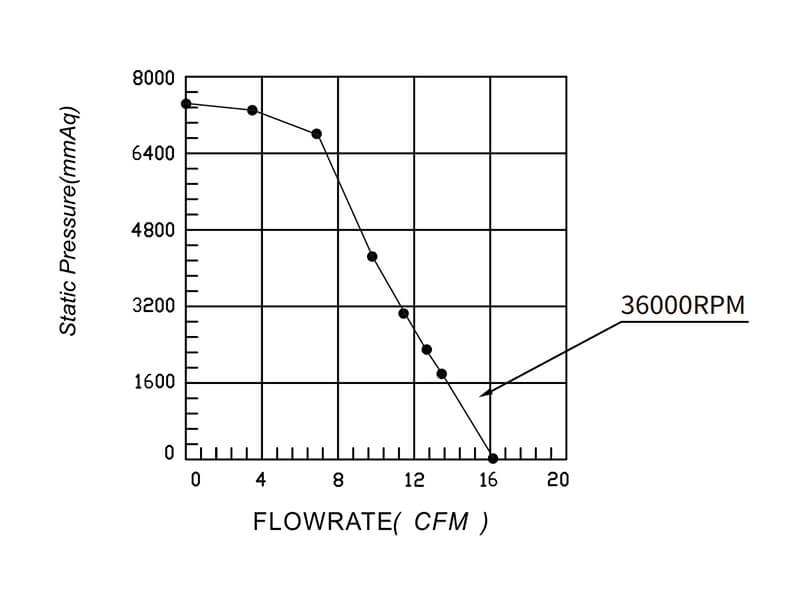

| Maximum airflow | 16.2 | CFM |
| Maximum static pressure | 742.3 | mmH2O |
| Noise | 71.8 | dBA |
| Application | Vacuum system、Air cushion machine 、CAPA | |
| Bearing | Ball / configurable bearing code per our catalog | |
| Frame | Plastic, UL94V-0 where specified | |
| Impeller | Plastic, UL94V-0 where specified |
Submit your requirements for HR7060H24B. Our team responds within 24 hours with pricing and lead time.
