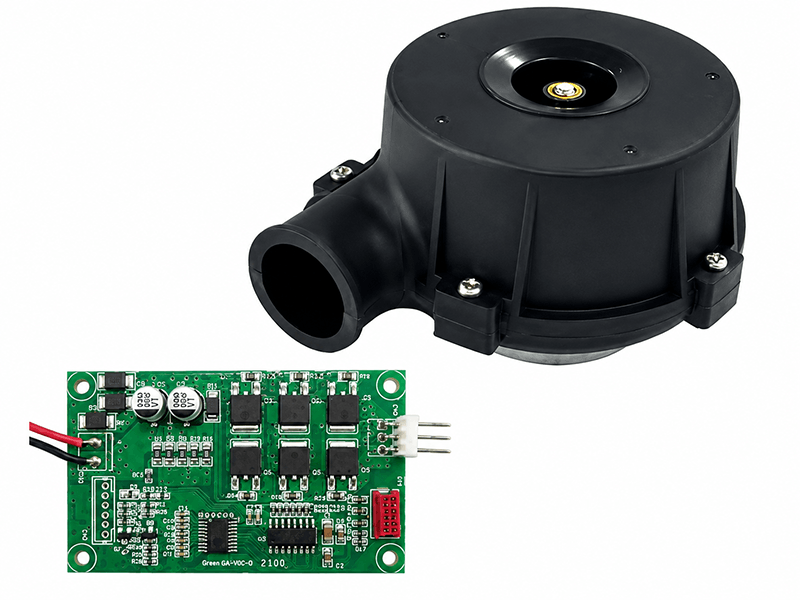

HR7060H24B DC Brushless Blower 77×66×57mm F Type
| Parameter | Value | Unit |
|---|---|---|

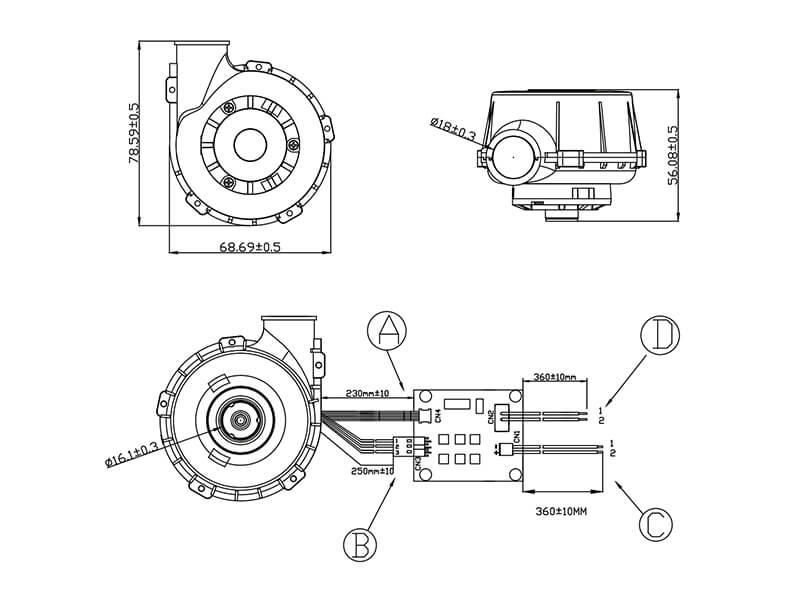

| Dimensions | 77×66×57mm | mm |
| Type | F Type | |
| Rated voltage | 24 | V |
| Operating voltage | 18-26.5 | V |
| Rated current | 1.5 | |
| Rated input power | 36 | W |
| Speed | 32000 | RPM |

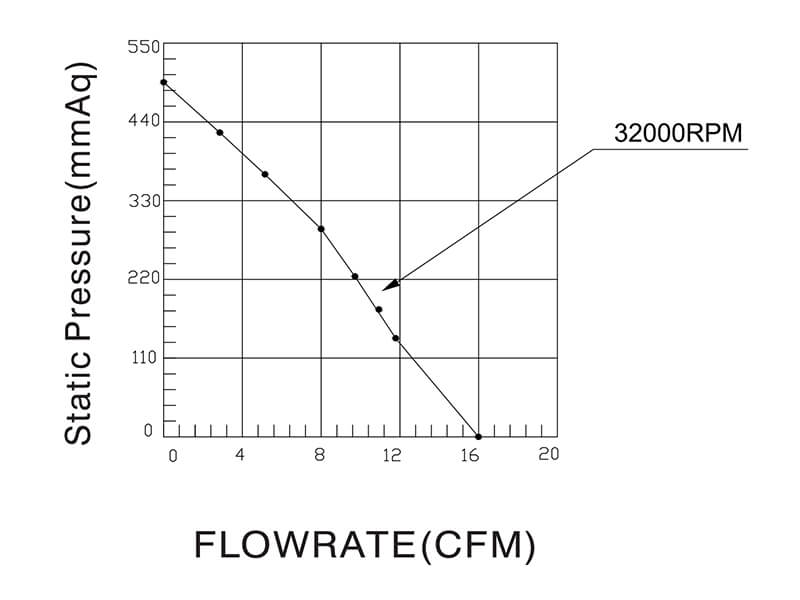

| Maximum airflow | 15.9 | CFM |
| Maximum static pressure | 493.3 | mmH2O |
| Noise | 71.3 | dBA |
| Application | CPAPS APAPS Ventilator | |
| Bearing | Ball / configurable bearing code per our catalog | |
| Frame | Plastic, UL94V-0 where specified | |
| Impeller | Plastic, UL94V-0 where specified |
