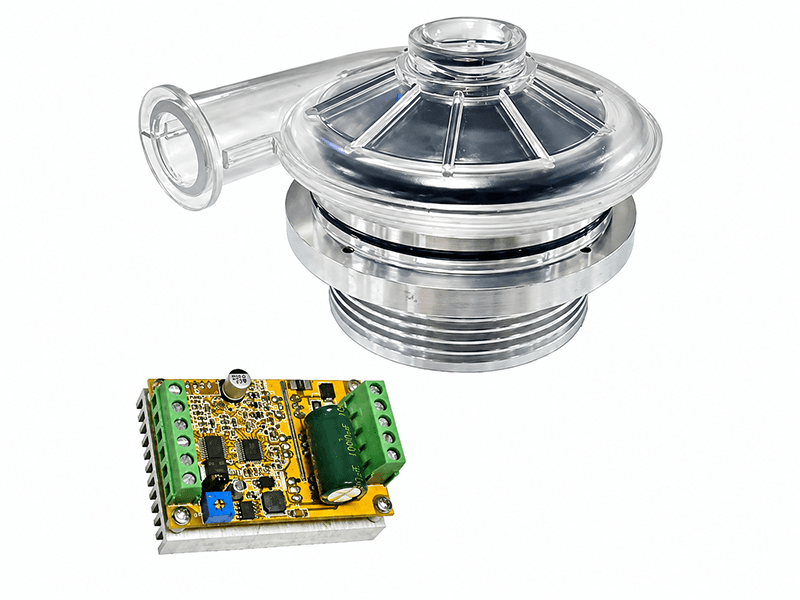

HR8060H24B DC Vortex Blower 80x77x60mm A Type
| Parameter | Value | Unit |
|---|---|---|
| Source page | 26 | |

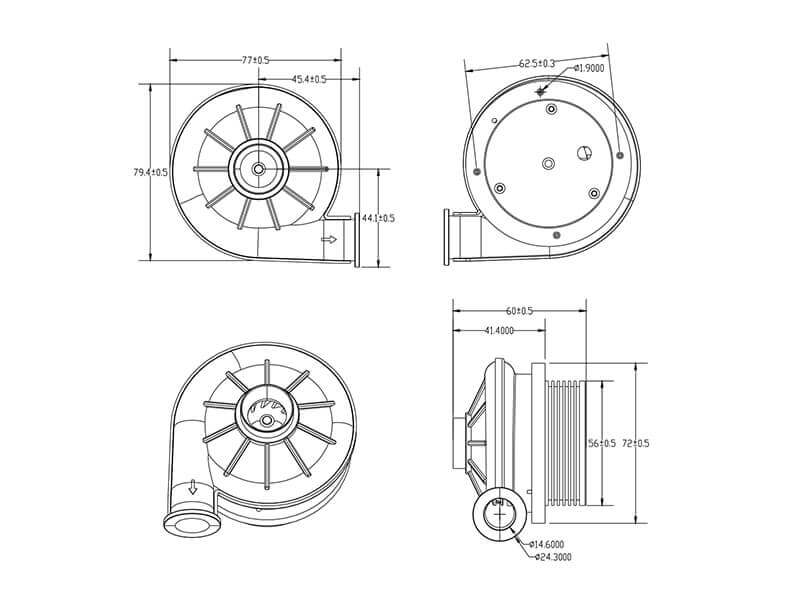

| Dimensions | 80x77x60mm | mm |
| Type | A Type | |
| Rated voltage | 24 | V |
| Operating voltage | 18~26.5 | V |
| Rated current | 8.5 | A |
| Rated input power | 204 | W |
| Speed | 44000 | RPM |

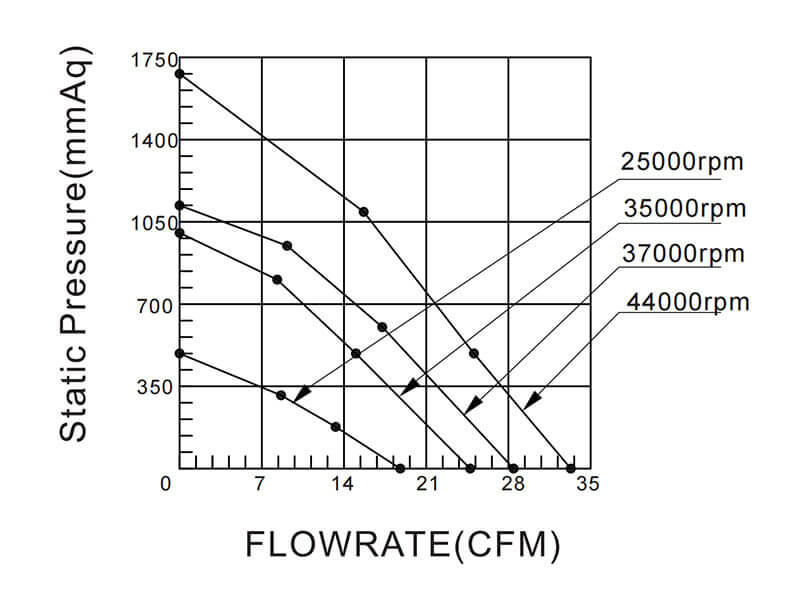

| Maximum airflow | 33.8 | CFM |
| Maximum static pressure | 1681.3 | mmH2O |
| Noise | 84.3 | dBA |
| Application | Industrial high-pressure airflow | |
| Bearing | Ball / configurable bearing code per TKFAN catalog | |
| Frame | Plastic, UL94V-0 where specified | |
| Impeller | Plastic, UL94V-0 where specified |
